Insta360 ONE R Dive Case (for 4K Wide Angle Mod, 1-Inch Wide Angle Mod and Dual-Lens 360 Mod) - Protect your ONE R for Deep-water Diving

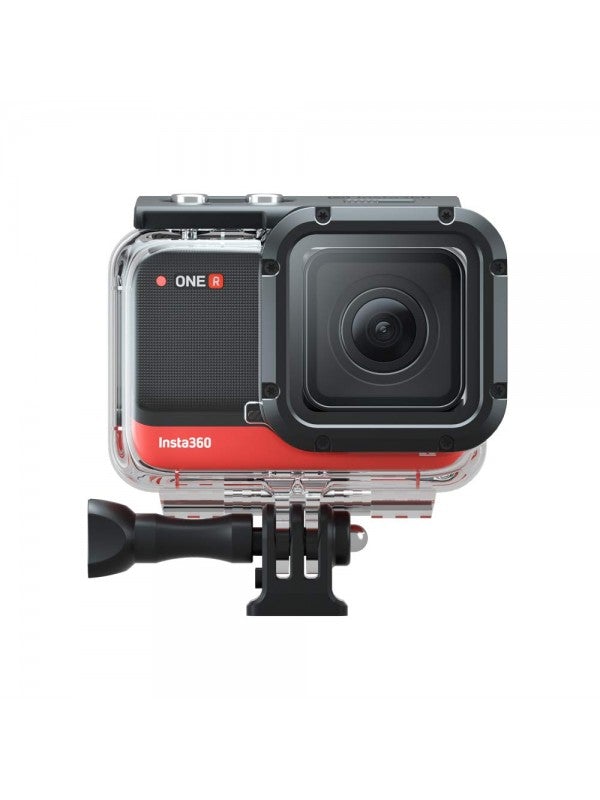

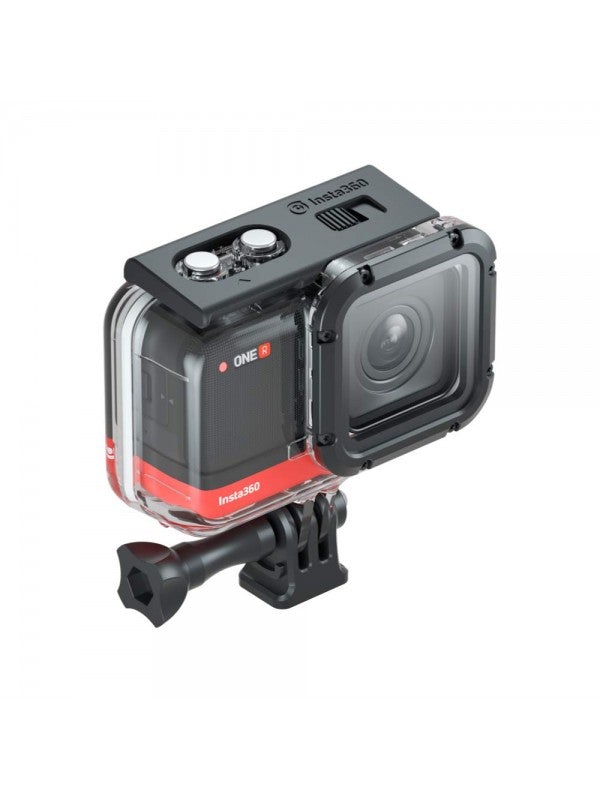

Insta360 ONE R Dive Case for 4K Wide Angle Mod - front
Insta360 ONE R Dive Case for 4K Wide Angle Mod - bottom

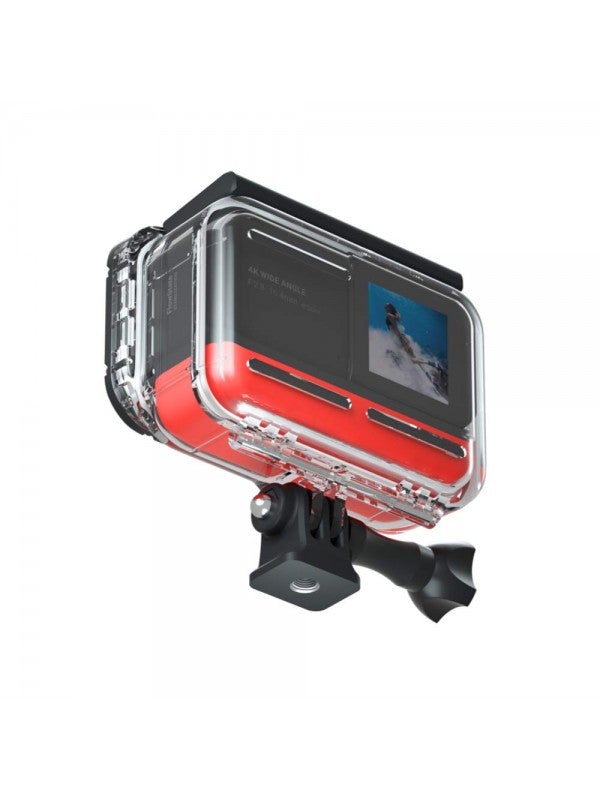

Insta360 ONE R Dive Case for 4K Wide Angle Mod - top
Insta360 ONE R Dive Case for 4K Wide Angle Mod - withoput camera - front
Insta360 ONE R Dive Case for 4K Wide Angle Mod - withoput camera - side

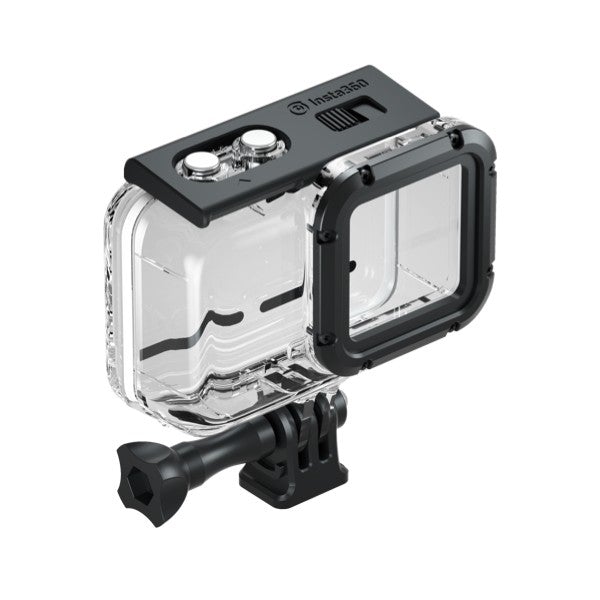

Insta360 ONE R Dive Case for 4K Wide Angle Mod - withoput camera - top

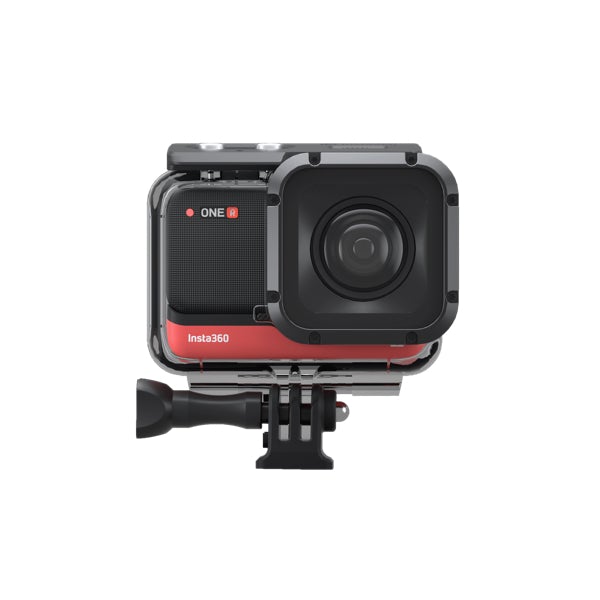

Insta360 ONE R Dive Case for 1 inch wide Angle Mod - with camera - front

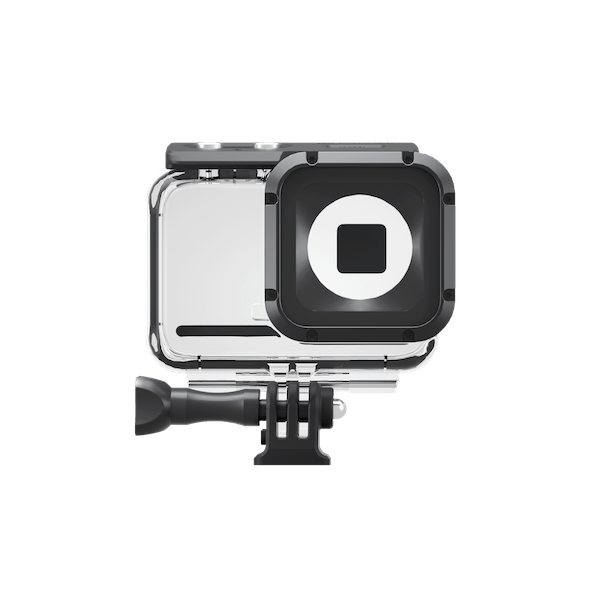

Insta360 ONE R Dive Case for 1 inch wide Angle Mod - without camera

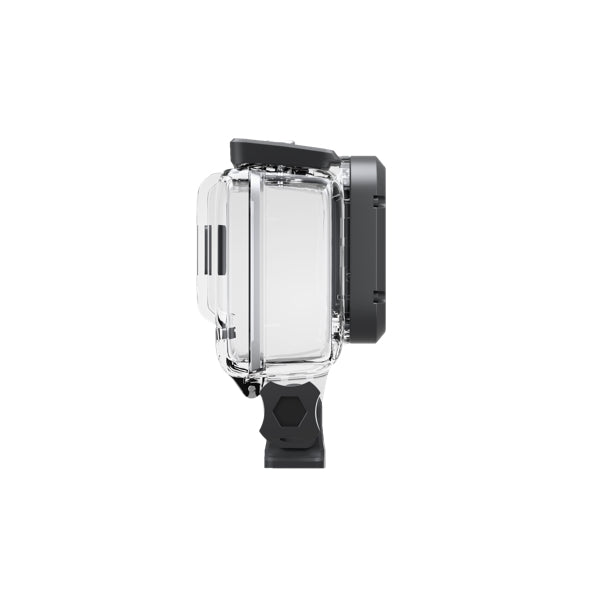

Insta360 ONE R Dive Case for 1 inch wide Angle Mod - without camera - side
Insta360-ONE-R-Dive-Case-For-Dual-Lens-360-Mod-Dive-Case
Insta360-ONE-R-Dive-Case-For-Dual-Lens-360-Mod-Dive-Case

Insta360 ONE R Dive Case (for 4K Wide Angle Mod, 1-Inch Wide Angle Mod and Dual-Lens 360 Mod) - Protect your ONE R for Deep-water Diving

Regular price
$59.99
Sale price
$50.00
Quantity must be 1 or more

Insta360 ONE R Dive Case

Insta360 ONE R Accessories | Action Camera Dive Case

(For 4K Wide Angle Mod / 1-Inch Wide Angle Mod / Dual-lens 360 Mod)




For Wide Angle Mod (4K / 1-Inch)

Insta360 ONE R Dive Case for 4K Wide Angle Mod -slide show



IPX8 water-resistant, protecting your ONE R for deep-water diving

Dive Case for Wide Angle Mod:

Water Proof up to 60 meters (196 ft)

Dive Case for Dual-Lens 360 Mod:

Waterproof up to 30 meters (98.4 ft).

Must be used with the Vertical Battery Base



How to use





 Note: The following instructions use the Dive Case for 1-inch wide mod as an example.

1. Open the case

Hold the dive Case with the arrow pointing to your left, as shown.

Push the lock lever to the left (1),

then pull down from the second arrow (2). Remove it from the hook (3). When the buckle is completely disengaged, open the Dive Case.

Insta360 ONE R Dive Case for 4K Wide Angle Mod - open the case

2. Insert the Camera

Be sure to insert the camera in the correct direction.

* When using the Dive Case for 1-inch Wide Angle Mod,

remove its protective lens first.

When using the camera in water, please lock the touch screen to avoid accidental presses.

When inserting the camera, take care not to scratch the lens.

Insta360 ONE R Dive Case for 4K Wide Angle Mod - insert the camera

3. Attach the Anti-Fog Inserts

Ensure that anti-fog inserts are inserted as shown below.

* When using the third-party anti-fog inserts, ensure that the size is within  25x16x1 mm.

If the anti-fog inserts are too large, they will cause water leakage, damaging the camera.

Insta360 ONE R Dive Case for 4K Wide Angle Mod - attach the anti-fog inserts

4. Close the Case

To close the Dive Case, latch the buckle with the hook and push the buckle until it clicks.

* Ensure the Dive Case is firmly closed. Be sure that the parts of the Dive Case in contact with its rubber seal are free of dirt or dust.

For the best results, keep the lenses of the Dive Case clean.

Insta360 ONE R Dive Case for 4K Wide Angle Mod - close the case

5. Attach the Stability Pads

When connecting the Dive Case to other accessories, such as the floating hand grip, be sure to stick a stability pad to the screw points.

Insta360 ONE R Dive Case for 4K Wide Angle Mod - attach the stability pads



For Dual-Lens 360 Mod

Insta360 ONE R Dive Case For Dual-Lens 360 Mod (Dive Case only) - slide show





Purpose-Built Dome Lenses

Seamless underwater stitching

30 m (98.4ft)

Waterproof depth

Standard 1/4" Mount

Ready for anything



*Bottom obstruction coverable by logo in app or by reframing your shot.



Insta360 ONE R Dive Case For Dual-Lens 360 Mod (Dive Case only) - promotional

Explore deeper.

Perfect for diving and other underwater uses.

This version of Insta360 ONE R diving box supports the dual-lens 360 Mod of the vertical ONE R camera system, which is designed for underwater 360-degree video and photo shooting.

This diving box requires the use of Insta360 ONE R vertical battery base accessories. Once assembled into the camera core module and dual-lens 360 modules, the camera components can be inserted into the diving box.

This high-quality diving room allows you to explore depths up to 30 meters (98.4 feet), which is perfect for deep water snorkeling or scuba diving. There is a standard 1/4-20" threaded mount at the bottom of the diving box, which can be matched with almost any handle mount.



How to use





1. Build ONE R

Remove the Core's lock cover and place into the slot on the Vertical BNattery Base.

* Assemble all parts and press them together until they connect firmly.

Designed for ONE R Vertical Battery Base.

The Vertical Battery Base is sold separately.

Insta360 ONE R Dive Case For Dual-Lens 360 Mod (Dive Case only) - build ONE R

2. Open the Case

Push up the lock lever to the Dive Case(1),

then pull down from the second arrow (2). Remove it from the hook (3).

When the buckle is completely disengaged, open the Dive Case (4).

Insta360 ONE R Dive Case For Dual-Lens 360 Mod (Dive Case only) - open the case


3. Insert the Camera

Be sure to insert the camera in the correct direction.

* Lock the touch screen to avoid accidental presses.

When inserting the camera, take care not to scratch the lens.

Insta360 ONE R Dive Case For Dual-Lens 360 Mod (Dive Case only) - insert the camera


4. Attach the Anti-Fog Inserts

Insert the 3 anti-fog inserts as shown below.

* When using the third-party anti-fog inserts, ensure that the size is within  25x16x1 mm for the lid inserts and 32x16x1.5 mm for the main body inserts.

If the anti-fog inserts are too large, they will cause water leakage, damaging the camera.

Insta360 ONE R Dive Case For Dual-Lens 360 Mod (Dive Case only) - attach the anti-fog inserts


5. Close the Case

To close the Dive Case, latch the buckle with the hook and push the buckle until it clicks.

* Ensure the Dive Case is firmly closed and free of dirt or dust.

For the best results, keep the lenses of the Dive Case clean.

Insta360 ONE R Dive Case For Dual-Lens 360 Mod (Dive Case only) - close the case


Please read the product manual in the box before using the dive case.



 Specifications





Compatibility: Insta360 ONE R Dual-Lens 360 Mod with Vertical Battery Base

Weight: 159g

Size: 144 x 81 x 78.5 (mm)

Working Temp: 59° to 77° F

Waterproof Depth: Up to 30m (98.4ft)
