Easily handle all the popular mirrorless and DSLR cameras on the market. A Gimbal for Mirrorless and DSLR Cameras with advanced kit.
The AK2000S is a three-axis handheld gimbal designed for video makers. It can easily handle all the popular mirrorless and DSLR cameras on the market. With the delicate appearance and user-friendly operation, the AK2000S is also easy-to-carry and achieves better connection with cameras. The AK2000S is committed to be the best gimbal ever and brings more possibilities to images and videos creation.
Difference Between Advanced Kit and Standard Kit:
More Accessories
Feiyu AK2000S Advanced Kit has same features as Feiyu AK2000S Standard Kit while Advanced Kit has additional brushless AFKII*1 (see 3.) and Fujifilm shutter release cable: Type-C to TRS2.5 T02 (see 14.).
Features:
1. Stable and Smooth
Flagship high torsion brushless motor, 16.8v high voltage actuation guarantees strong power of gimbal. The lastest W6 algorithm enables the error of angle less than 0.05°. The AK2000S has a quicker response speed and smoother operation thanks to our latest generation algorithm. Multiple levels of sensitivity settings allow for smoother video creation.
2. Easily Supports Mirrorless/DSLR Cameras
The AK2000S is portable yet has a huge payload capacity, compatible with various camera models and accessories. The motor is equipped with a new generation of Cortex M4 core and a 200MHz CPU. The maximum motor control frequency is 20,000 times per second, with 2.2kg payload capacity thanks to the strong motor torque.
Made of ultra-light space-grade aluminum alloy, the net weight is just 1.1kg. The folded size is equal to an A4 paper, which will fit into a normal bag and is easy-to-carry.
3
3. Unique LCD Touch Screen Enables One-Handed Operation
Without the APP, you can also operate the AK2000S by the unique LCD touch screen. The screen can be locked to avoid accidental touches.
4. Wireless Sound Recording
Record sound at a in distance with the wireless recording set.
5. Shooting at Different Angles With Detachable Handles
As a pioneer in integrating detachable handles into mirrorless camera gimbals, the AK2000S can be held in two ways making it suitable for various situations.
6. Delicate Appearance and Comfortable Grip Feeling
The gimbal has a comfortable touch feeling thanks to the well-polished rosewood handle. The ergonomic design provides you with a cosy grip experience.
7. Motor Lock & Quick Release System
Each axis is all equipped with locks, which make the gimbal more stable during balancing and the folding process.
Quick-release 2.0: quick release plate, ARCA quick release system, seamless switching between popular quick release systems; Mount camera within 1 second by ARCA quick release system.
8. Quicker Respond Speed
The improved motor response speed allows you to start speed; start the gimbal in 2 seconds, or warm start in 1 second from sleep mode.
9. One Click Enters Different Modes
Enter time-lapse shooting mode, inception mode, Vlog Selfie mode, and portrait mode with just one click. The AK2000S meets all the requirements for professional shooting, Vlogs and Tik-Tok.
10. 1 Charging for 3 Days Shooting
14 hours working time thanks to the built-in huge battery. Fully charged within 1.5 hours with 18w quick charge design.
11. Supports More Accessories To Bring More Possibilities
Brushless follow focus: Precisely control focus using the multi-function knob.
※Standard Kit comes with versatile handle/anti-skid tripod; Advanced kit has extra brushless follow focus.
Hyperlink controller: Operates the AK2000S by controller, or motion-control the tilt and pan movements.
Extension rod: It can be used as a simple rocker arm or simulate low altitude aerial photography.
Versatile handle holder: You can shoot at a low angle using the versatile handle.
Tilt axis support holder: Fix the camera in one of two ways to reduce the shake and connect more equipment.
Specifications:
Payload: 2.2Kg/4.85 lb (well balanced)
Weight: 1.1kg/2.4 lb (not included the battery, shutter release cable, camera, lens and so forth)
Usage time: 7h for the normal working state, 14h for standby mode (well balanced)
Charging Time: ≥1.5h, Support all the normal charger and quick charger which charging power≤18W (for example 9V*2A=18W, 12V*1.5A=18W)
How to charge the gimbal: Charging via the USB C port on the handle( Quick charger which charging power≤18W is supported) The screen will show charging icon, and disappear after 1 second. Press any button to show the current charging state.
Materials In Main Body: Aluminum Alloys +Rosewood
Water-Proof Grade: Not Water-proof
Dimensions 158.7*203.6*372.8mm (Normal state), 71*208.8*350.4mm (Storage)
Rotatable Range:
- Tilt: 230°(with limitation)
- Roll: 360°(Unlimited)
- Pan: 360°(Unlimited)
Controllable Range:
- Tilt: +175°to -55°
- Roll: 360°unlimited(it could be automatically rotated 360° in one circle or several circles in Inception mode)
- Pan: 360°(unlimited)
Package Content:
Advanced Kit ( including versatile arm,anti-slip Tripod, USB cables, Brushless AFKII and other accessories):
- AK2000S *1
- Brushless AFKII*1
- Versatile arm + tighten screw*1 set
- anti-slip metal tripod *1
- Sony USB control /camera charging cable: USB2.0 to Micro(A01)*1
- Sony USB control cable: Type C to Multi*1
- Canon USB Cable USB 2.0 to Mini(B01)*1,
- 5D Mark IV USB Cable USB 3.0 to Micro 3.0(A02)*1
- Shutter release for Panasonic TYPE C to DC2.5 *1
- Fujifilm Shutter Release Cable TYPE C to TRS2.5 *1
- Nikon &EOS R USB control/gimbal charging cable: USB 2.0 to Type C(C01)*1
- Bottom quick release plate *1
- ARCA quick release plate *1
- lens supporting frame + fixed screw *1
- Thumbscrew to fix the camera(short)*1
- EPP box*1
A Gimbal for Mirrorless and DSLR Cameras. It can easily handle all the popular mirrorless and DSLR cameras on the market.
The AK2000S is a three-axis handheld gimbal designed for video makers. It can easily handle all the popular mirrorless and DSLR cameras on the market. With the delicate appearance and user-friendly operation, the AK2000S is also easy-to-carry and achieves better connection with cameras. The AK2000S is committed to be the best gimbal ever and brings more possibilities to images and videos creation.
Features:
1. Stable and Smooth
Flagship high torsion brushless motor, 16.8v high voltage actuation guarantees strong power of gimbal. The lastest W6 algorithm enables the error of angle less than 0.05°. The AK2000S has a quicker response speed and smoother operation thanks to our latest generation algorithm. Multiple levels of sensitivity settings allow for smoother video creation.
2. Easily Supports Mirrorless/DSLR Cameras
The AK2000S is portable yet has a huge payload capacity, compatible with various camera models and accessories. The motor is equipped with a new generation of Cortex M4 core and a 200MHz CPU. The maximum motor control frequency is 20,000 times per second, with 2.2kg payload capacity thanks to the strong motor torque.
Made of ultra-light space-grade aluminum alloy, the net weight is just 1.1kg. The folded size is equal to an A4 paper, which will fit into a normal bag and is easy-to-carry.
3. Shooting at Different Angles With Detachable Handles
As a pioneer in integrating detachable handles into mirrorless camera gimbals, the AK2000S can be held in two ways making it suitable for various situations.
4. Unique LCD Touch Screen Enables One-Handed Operation
Without the APP, you can also operate the AK2000S by the unique LCD touch screen. The screen can be locked to avoid accidental touches.
5. Wireless Sound Recording
Record sound at a in distance with the wireless recording set.
6. Delicate Appearance and Comfortable Grip Feeling
The gimbal has a comfortable touch feeling thanks to the well-polished rosewood handle. The ergonomic design provides you with a cosy grip experience.
7. Motor Lock & Quick Release System
Each axis is all equipped with locks, which make the gimbal more stable during balancing and the folding process.
Quick-release 2.0: quick release plate, ARCA quick release system, seamless switching between popular quick release systems; Mount camera within 1 second by ARCA quick release system.
8. Quicker Respond Speed
The improved motor response speed allows you to start speed; start the gimbal in 2 seconds, or warm start in 1 second from sleep mode.
9. One Click Enters Different Modes
Enter time-lapse shooting mode, inception mode, Vlog Selfie mode, and portrait mode with just one click. The AK2000S meets all the requirements for professional shooting, Vlogs and Tik-Tok.
10. 1 Charging for 3 Days Shooting
14 hours working time thanks to the built-in huge battery. Fully charged within 1.5 hours with 18w quick charge design.
11. Supports More Accessories To Bring More Possibilities
Brushless follow focus: Precisely control focus using the multi-function knob.
※Standard Kit comes with versatile handle/anti-skid tripod; Advanced kit has extra brushless follow focus.
Hyperlink controller: Operates the AK2000S by controller, or motion-control the tilt and pan movements.
Extension rod: It can be used as a simple rocker arm or simulate low altitude aerial photography.
Versatile handle holder: You can shoot at a low angle using the versatile handle.
Tilt axis support holder: Fix the camera in one of two ways to reduce the shake and connect more equipment.
Specifications:
Payload: 2.2Kg/4.85 lb (well balanced)
Weight: 1.1kg/2.4 lb (not included the battery, shutter release cable, camera, lens and so forth)
Usage time: 7h for the normal working state, 14h for standby mode (well balanced)
Charging Time: ≥1.5h, Support all the normal charger and quick charger which charging power≤18W (for example 9V*2A=18W, 12V*1.5A=18W)
How to charge the gimbal: Charging via the USB C port on the handle( Quick charger which charging power≤18W is supported) The screen will show charging icon, and disappear after 1 second. Press any button to show the current charging state.
Materials In Main Body: Aluminum Alloys +Rosewood
Water-Proof Grade: Not Water-proof
Dimensions 158.7*203.6*372.8mm (Normal state), 71*208.8*350.4mm (Storage)
Rotatable Range:
- Tilt: 230°(with limitation)
- Roll: 360°(Unlimited)
- Pan: 360°(Unlimited)
Controllable Range:
- Tilt: +175°to -55°
- Roll: 360°unlimited(it could be automatically rotated 360° in one circle or several circles in Inception mode)
- Pan: 360°(unlimited)
Package Content:
Standard Kit(including versatile arm 、anti-slip Tripod 、USB cables and other accessories) AK2000S *1
- Versatile arm + tighten screw*1 set
- anti-slip metal tripod *1
- Sony USB control /camera charging cable: USB2.0 to Micro(A01)*1
- Sony USB control cable: Type C to Multi*1
- Canon USB Cable USB 2.0 to Mini(B01)*1,
- 5D Mark IV USB Cable USB 3.0 to Micro 3.0(A02)*1
- Shutter release for Panasonic TYPE C to DC2.5 *1
- Nikon &EOS R USB control/gimbal charging cable: USB 2.0 to Type C(C01)*1
- FUJI shutter cable(Type C to TRS2.5)*1
- Bottom quick release plate *1
- ARCA quick release plate *1
- lens supporting frame + fixed screw *1
- Thumbscrew to fix the camera(short)*1
- EPP box*1
Feiyu G6 Gimbal for Action Camera/Go Pro Hero 6/5/4. This handheld Gimbal Stabilizer is waterproof and perfect for filming.
- It fits HERO7, HERO6 Black, HERO5 Black
- 4-Way Joystick for Gimbal Control
- 3-Axis Gimbal Helps Creates Stable Video
- Sliding Arm and Unique Elevation Angle
- Replaceable Holder for Camera
- Integrated OLED Display and Joystick
- Inbuilt Wi-Fi and Bluetooth
- 360 Degree Pan/Tilt and 320 Degree Roll
- Motion Control Time Lapse/Waterproof
- 12 Hour Runtime/Supports Camera Charging
Feiyu G6 could be compatible with Sony RX0 and GoPro Hero series of action cameras. Fit for a smartphone with a smartphone adapter, the width of the smartphone should be 54-87mm. It is easy to balance the gimbal with the combination of knob and sliding arm. And both the tilting axis and panning axis are 360 degrees, enabling shooting as you wish.
Features
Wi-Fi + Bluetooth dual working mode
With connecting GoPro HERO6 / HERO5, RX0's WIFI, G6 can control the camera to take video /photo and set the working modes. At the same time, all the specifications can be set in Feiyu ON App once it connects via Bluetooth.
Exchangeable camera holder
The camera holder of the G6 is detachable, the replaceable holder fits the RX0 camera.
The whole gimbal is splash-proof
The gimbal is the design splash-proof, making shooting freely.
No block in visual
An innovative elevation angle of the axis makes it no more blocks in visual to show a complete screen creation composition with no harm in anti-shake performance. It is easy to balance the gimbal with the combination of knob and sliding arm. And both the tilting axis and panning axis are 360 degrees, enabling shooting as you wish.
An ingenious screen shows working mode clearly
An innovative build OLED screen show specifications of gimbal and camera, working modes, battery life, Bluetooth connection etc. Everything is under control.
• Bluetooth Connection
• Wi-Fi Connection
• Gimbal Working Mode
• Gimbal Power Consumption
• Camera Working Mode
Shoot in a more smart way with App
A new app interface. It can achieve remote control, automatic calibration, firmware upgrade and the setting of the multi-motion parameter by Feiyu ON App makes more possibility in creation.
Lateral positioning with 1/4 hole + dowel pin

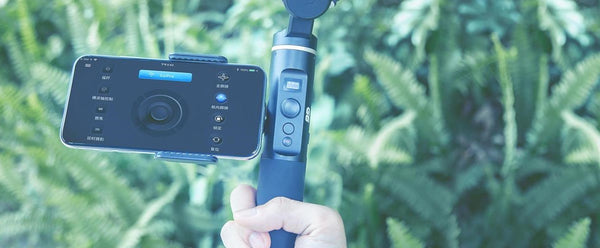

A smartphone setting up in the G6 by mobile device support can be used for a viewfinder.
Trail time-lapse photography
Shooting nodes can be set at random, creating a special trail time-lapse photography.
Can charge for the camera
Support to charge the camera and last a long time for shooting.
Specifications:
Model | G6 (G6 3-Axis Stabilized Handheld Gimbal) |
Rotation Range |
Tilting Range: 360°(Unlimited) Rolling Range: 320° |
Battery Runtime | 12 Hours |
Weight | 11.85 oz / 336 g (without Battery) |
Maximum payload | no more than 130g (4.59 oz) |
Mounting | 4x 1/4"-20 Female Thread |
Battery | 26650 3.7V 5000mAh |
FeiyuTech Vimble ONE Single Axis 18cm Stretchable Handheld Smartphone Gimbal Stabilizer. It is perfect for Live Streaming and Anti Shaking.
Enhanced Features: Foldable, Extendable, Anti-Shaking
The new Vimble ONE handheld smartphone gimbal offers follow features:
- Damage-free Anti-Shaking
- Foldable for Easy Storage
- Extensible Design
- One-Click Vertical Shooting
- Gesture Photography
- 6 Hours Battery Life
- Weight 186g
- Light Track Automatic Exposure
- Controllable via APP
Anti Shaking for Stabilized Images and Videos
Built-in attitude sensor, the FeiyuTech Vimble ONE gimbal stabilizer adjusts the smartphone gesture timely with the brushless electric mechanism.
This will eliminate any handshaking effect for smooth videos.
Extend Freely for Fantastic Filming
Built-in 180mm extension pole, FeiyuTech Vimbo One Gimbal Stabilizer provides more freedom when users are taking selfies or group photos.
It allows a wider frame to easily capture beautiful scenery in one shot.
Easily Record Using the Smartphone Built-in Camera
The Vimble One supports built-in cameras in smartphones, such as Huawei, Xiaomi, OPPO and VIVO.
Connecting with the smartphones via Bluetooth, the Vimble One can control the photography and recording functions of the built-in camera via the buttons on the handle easily.
Small and Portable, Easy to Carry
Fashionable and simple design, you can put Vimble ONE in the pocket anytime once it's folded.
It's as small as 130mm in height. Its size smaller than a smartphone.
6 Hours Battery Life
Once fully charged up, the battery is good for 6 hours of usage.
You can recharge the stabilizer via a power bank. This is definitely sufficient and convenient for daily usage.
Fast Switch Between Horizontal and Vertical Shooting
Fast adjustment of the orientation of the view is crucial during shooting.
The FeiyuTech Vimble One can quickly switch between horizontal and vertical shooting, and it can easily control various shooting scene.
It is a perfect tool for live streaming and Tik Tok videos shooting.
Phone Holder for Live Streaming
This gimbal stabilizer is also perfect to serve as a phone holder.
It's adjustable which is perfect for live streaming when you are sitting still.
Multiple Filming Modes
Under the Horizontal Locking Mode, you can keep the phone at a horizontal position when you want to get a wide view during your shooting.
Even when the stabilizer is wagging from side to side, you will only observe a smooth video swiping across your view without any disruption.
Under the Follow-up Mode, the stabilizer detects the movement of the handle, and rotate the phone accordingly.
All the adjustment/rotation of the phone orientation comes in smoothly without notice.
More Shooting Functions under FEIYU App
Gesture Control Camera Shooting
FeiyuTech Vimble One also supports simple gesture for turning on camera shooting/filming. This makes selfie no longer an issue while you are travelling alone.
Hitchcock Dolly Zoom
With this Vimble One Stabilizer, you can shoot simply a blockbuster film as well. FeiyuTech App helps you to achieve the Hitchcock dolly zoom shooting effect easily.
Overlapping Images Spark Your Creativity
With this smartphone gimbal stabilizer, you can easily create repetitive exposure of an image at different times. This will give you a surprisingly eye-catching image.
Easy One-Button Control to Enable Automatic Light Exposure
With the FeiyuTech App, you can enable the feature to capture the motion of lights over a period of time.
Time-lapse Photography
The App also enables a one-click function for capturing the movement over a static
time-lapse. This is ideal for capturing nature during your travel.
Specification:
Compatible phone | The width range for smartphones is from 41mm to 89mm. The max. size for the phone is up to 6.6 inches. The max. payload is 250g. It is compatible with all iPhone series, HUAWEI P30 pro、Xiaomi9、VIVO NEX, OPPO find X,Samsung Note9, etc(under 6.6 inches). Compatible phones as below: ①iPhone: iPhoneSE2, iPhone XS,iPhone XS Max,iPhone 11,iPhone 11 Pro Max. Android: Samsung note8,Xiaomi 9,VIVO X30 Pro,VIVO Qoo Neo,OPPO FindX. (Continuously update) ②160g phone model and 250g phone model. ③Large-size phone as HONOR NOTE10 can be used normally in landscape mode. Note: Need to use a third-party mounting plate for mounting the action camera. |
Battery | 3.7V,800mAh,2.96Wh, Built-in battery cannot be removed. |
Charging | Charging from the Micro USB port on the handle, and support using while charging. |
Battery life | 6h (Theoretical battery life) |
APP | Feiyu ON |
Charging Time | 2h, recommend using 5V/2A adapter for charging. (forbid to use quick charge) The indicator is red while charging. When the battery is fully charged, it turns green. |
Weight | 186g (include built-in battery but exclude accessories and phone) |
Material | Plastic ABS/PC |
Bluetooth | 5.0 |
Waterproof | NO |
Rotatable range |
|
Extensible port | 1/4 inch thread hole on the bottom of the handle |
Standard accessories | Charging cable *1, Small Tripod *1 |
Feiyu Vimble 2A Telescopic Light-weight Action Camera Gimbal is the best option for action camera users.
The Vimble 2A is a three-axis gimbal specifically designed for action cameras. It features an 18cm extension rod, with enhanced control of shooting/recording/time-lapse, supports switching between landscape mode and portrait mode, and WiFi Connection.
Feature
★Portable and Easy-to-Carry★
★18cm Extension Rod★
The revolutionary handle, which incorporates the 18cm extension rod allows, recording a wider range of scenery.
★More Intelligent WiFi Control★
Through the WIFI connection of the camera, it is much easier for shooting/recording/time-lapse, etc. Automatic password saving helps you skip the complicated operation in connection.
★Redefined Design for Action Camera Stability★
The Vimble 2A is the best gimbal for action cameras that works with GoPro5/6/7/8. It is equipped with a dedicated Gopro quick release system which allows quick and easy installation of your camera.
★Ergonomically Designed Grip★
The ergonomic design of the gimbal handle is comfortable and easy to hold, reducing fatigue to a large extent.
★Multi-Functional APP★
The FeiyuOn App supports motion time-lapse, customize trigger buttons and more personalized settings.
★Quick Mode Switching★
Inclining the handle will quickly enter portrait mode. Suitable for diverse shooting requirements, including daily vlog and Tiktok creation.
★10 Hours Battery Life★
The Vimble 2A is equipped with a 1300mAh battery which is rated for 10 hours. Long-lasting for the whole shooting process.
Specification
Battery type | 1300mAh(built-in battery, charging via Micro USB port on handle side). |
Theoretical battery time | 10h(well-balanced status) |
Charging time | ≥2h(recommending using 5V/2A adapter for charging the battery. Quick charging is forbidden ) |
Material | ABS&PC compound materials |
Weight | 277.6g(include a built-in battery, NOT include camera) |
Splash-proof | No |
Rotatable Range | Tilting range: 330°(with limitation) Rolling range: 195°(with limitation) Panning Range: 330°(with limitation) |
Controllable Range | Tilt range: +150° to -180° Roll range: +80° to 115° Pan range: +85° to 245° |
FeiyuTech G6 Max 3-Axis USB/Wi-Fi Control Stabilized Handheld Gimbal for Smartphone/Action Sport Camera/Mirrorless Camera/Pocket Camera
Still 1 for 4 with an Increased Payload
The new and improved high torque, magnetic, brushless motors boast a 50% increase in output, making the gimbal compatible with Mirrorless Cameras, Smartphones, Sports Cameras and Compact Cameras. The G6 Max can carry up to 1.2kg, which support the combination of more cameras and lenses to provide more flexible use.
Half A4 paper size
Compared to the G6 Plus, the payload of the G6 Max has increased, but the volume has decreased by 20%. With its new compact design, the G6 Max can be used one-handed and can be packed away with ease.
New Motor Lock Design & Quick Release System
Each axis is equipped with physical motors locks. These new motor locks can be used to make balancing easier and protect the gimbal during transport. This new addition allows the gimbal to be set up quickly and easily so you don't miss the action.
Multi-function ‘Magic Focus Ring' 2.0, With Improved Sensitivity
Larger OLED Screen and Upgraded Interactive Experience
Equipped with a low-power OLED screen, the screen area is increased by 200% compared with G6 Plus, which more intuitively displays the parameters of gimbal and camera, current working mode, power consumption,Bluetooth connection,etc. It also supports the operation of "Inception", "Instant Vertical Photography" and "Motion Time-lapse", as well as setting "strength setting", "handwheel setting", "camera parameters" bringing an excellent user experience.
9 Handy Shooting Modes
The modes of the G6 Max have been upgraded too. The G6 Max comes complete with 9 functional modes, which meet the needs of any professional videography and daily recording, allowing you to shoot like a pro. Without the need for the App, it can be operated with just one hand, and professional shooting can be made simple.
Scientifically Designed for a comfortable experience
It is made of aerospace aluminium alloy with light weight and no loss of texture; The arc design of the handle follows the ergonomic principle, and the flexible silicone on both sides makes the grip more comfortable and labor-saving; The well thought out button layout allows you to use most operations, such as shooting and mode selection with one hand.
Splash-proof design for more shooting environments
The whole gimbal adopts waterproofing technology, which can will protect it from splashes and dust. Therefore, it can follow the photographer into a variety of complex shooting environments.
WiFi control + cable control for more choices
The G6 Max supports both WiFi and cable connection to the camera for freer and easier control of your shooting. The gimbal can control photography, videography, zoom and focus, as well as adjusting settings such as ISO, WB, Exposure, and shooting modes.
Long Battery Life & Reverse Charging
The gimbal has a runtime of 9 hours to meet daily shooting needs. At the same time, the G6 Max supports reverse charging to supply power to the camera and other devices to ensure you can shoot for as long as you need.
Specifications:
Main functions (for users) |
|
Payload | 1.2kg/2.65lb |
Weight | 665g(include built-in battery, Not include the accessories of camera,smartphone adatper etc.) |
Battery type | 2200mAh,7.4V,Charge it via USB-C port on gimbal, Built-in battery can not be removed. |
Battery time | 9 hours(Successfully tested on 600g camera in show mode at well-balanced status) Battery time is depended on the actual payload. |
Charging | Use USB C cable for charging via Type C port,Recommend using 5V/2A adapter for charging battery. Quick charging is forbidden. The charging indicator will flash at display when charging. And shows full charge symbol when fully charged. |
Charging time | Approx.: 3 hours (5V/2A) |
Waterproof grade | Splash proof |
Rotatable Range | Tilting range:280°(with limitation) Rolling range:330°(with limitation) Panning range:360°(without limitation) |
Mounting Camera/Gopro/Smartphone (before powering on) | Place tilt motor on right side(from user view, as picture shown) Camera: Mount the camera on quick release plate, slide it into the fixed plate from left to right, then fix the safety lock while it is in a suitable position. Smart phone: It needs to attach smart phone adapter(standard accessory) on the quick release plate before mounting smart phone. Action camera: Before mounting Gopro , tighten T clamp adapter (a standard accessory) on the fixed plate by 1/4inch thumb screw. |
Balancing (before power on) |
Unlock axis motor: G6Max has 3-axis motor locks, unlock the tilt/roll axis to release storage status firstly. Place the cross and slide arm to its working position ,then lock the axis motor for mounting and balancing the camera. Make sure to unlock each axis motor in order when balancing. Please well-balanced the gimbal before powering on . Tilt axis balance: Follow the balance step as: camera upward balance/forward balance; when the camera can stay still in any angle ,balance is done successfully. Roll/Pan axis balance: Move the cross arm left-right to balance the axis. Tighten the axis ring when well-balanced. |
Power ON/OFF | Power ON/OFF: Long press the power button, the display will show Feiyu Logo ICON and release it when you hear the beep tone. |
Button explanation |
Mode abbreviation: Pan mode-HF;lock mode-LK; Follow mode-TF;All follow-AF. ★ Function button(front side):
|
Working with Smartphone&Feiyu ON APP | Connect to Feiyu ON APP first(noted:G6max can not control original camera of smartphone)
|
Working with Camera | Connect camera Wifi via Feiyu ON APP at first time, after connection is done. The camera is under the control to take photo/video/zoom/follow focus(it will reconnect automatically in the next time)
|
Connect to cameras & control camera |
|
Connect/disconnect to camera Wi-Fi |
|
Standard accessories |
|
Optional accessory | Extendable bar; Monopod; Monitor; Lateral smartphone holder; Wireless MIC kit |
Extended Interface | 3pcs 1/4inch thread hole(2 pcs at the left and right side of the handle, 1pcs at the bottom of handle) |
